Compact Size with more Practicability and Convenience
PLANET has released a series of DC single output industrial DIN-rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
PLANET DC single output industrial DIN-rail power supply units accept universal 100-240V AC input voltage and provide 24V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35/7.5 or 15. It is an ideal and convenient DC power feeding solution for industrial devices installed in heavy Industrial environments.
Stable Performance under Difficult Environments
PLANET DC single output industrial DIN-rail power supply units provide industrial Ethernet devices with short circuit, overload, over voltage and over temperature protection to enable to have a stable operation. The units use the free air convection cooling system. Being able to operate under the temperature range from -20 to 70 degrees C, the DC single output industrial DIN-rail power supply units can be placed in almost any difficult environments.

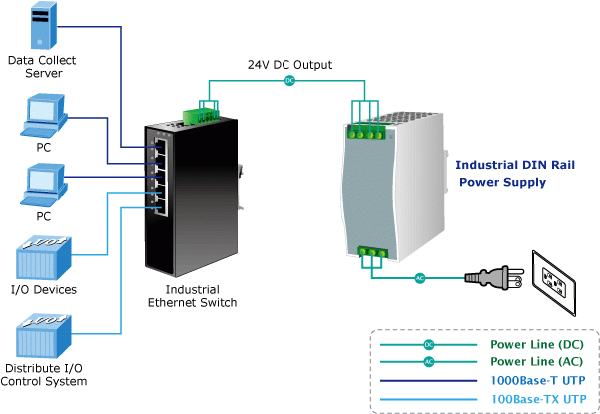

Ideal DC 24V Power Feeding Solution for Non-PoE Industrial Devices
The following DC single output industrial DIN-rail power supply units are able to supply sufficient 24V power to non-PoE industrial devices, such as industrial Fast/Gigabit Ethernet switches and industrial VDSL2 converters. The model names and specifications are:
PWR-40-24 (MEAN WELL/MDR-40-24):
40W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C)
PWR-60-24 (MEAN WELL/MDR-60-24):
60W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C)
PWR-75-24 (MEAN WELL/NDR-75-24):
75W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C)
PWR-40-24 (MEAN WELL/MDR-40-24)
Universal AC input / full range
Protection: short circuit, overload and over voltage
Cooling by free air convection
For installation on DIN rail TS-35/7.5 or 15
NEC class 2 / LPS compliant
LED indicator for power on
DC OK relay contact
No load power consumption<0.75W
100% full load burn-in test
PWR-60-24 (MEAN WELL/MDR-60-24)
Universal AC input / full range
Protection: short circuit, overload and over voltage
Cooling by free air convection
For installation on DIN rail TS-35/7.5 or 15
LED indicator for power on
DC OK relay contact
No load power consumption<0.75W
100% full load burn-in test
PWR-75-24 (MEAN WELL/NDR-75-24)
Universal AC input / full range
Protection: short circuit, overload, over voltage and over temperature
Cooling by free air convection
For installation on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
PWR-40-24 (MEAN WELL/MDR-40-24)
Hardware Specifications
Dimensions (W x D x H)
40 x 100 x 90mm
Weight (kg)
0.3kg
Input Voltage
85 ~ 264VAC ,50/60Hz
120 ~ 370V DC
Power Output
40 watts, 24V, 1.7A
Temperature
Operating: -20~70 degrees C Storage: -40~85 degrees C
