Excellently Efficient Surveillance Video

PLANET ICA-M4580P PoE IP Camera with dual light delivers excellent picture quality in H.264(+)/H.265(+) 5 mega-pixel resolutions and multi streaming capabilities. Users will benefit from reduced 83% bandwidth and data storage through more efficient video compression.

Incorporating the Sony STARVIS back-illuminated CMOS sensor, Smart IR illuminators, and Warm White LEDs, which are specially designed for surveillance applications, the ICA-M4580P provides sharp and detailed images under all lighting conditions, offering superior performance in both low-light environments and complete darkness. The combination of Smart IR and Warm White LED illuminators ensures accurate color reproduction and enhanced visibility for comprehensive monitoring. With the 2.7~13.5mm motorized focus and 5x zoom, users can remotely adjust the focus and zoom from the web interface. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-M4580P, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

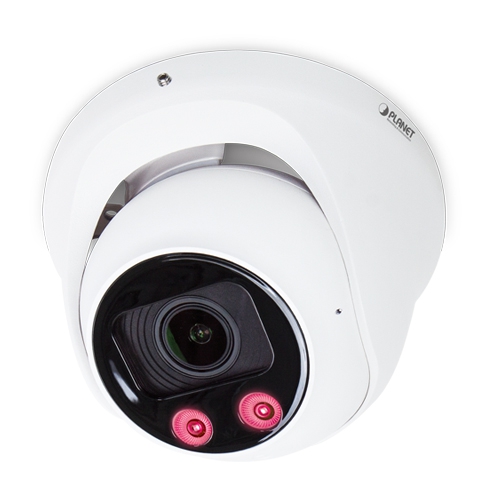

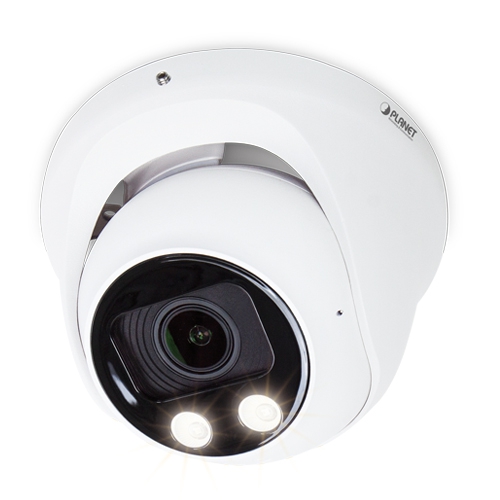

Unique Smart IR and Warm White LED

The product brings flexibility and precision to nighttime surveillance with its dual IR and warm white LED support, enabling both Smart IR and Full Color modes. This innovative combination allows the camera to adapt effortlessly to various lighting conditions, delivering clear, detailed images in black and white or vibrant full color, depending on the environment. It is perfect for maintaining top-quality monitoring around the clock.

High Efficiency Video Compression

The ICA-M4580P employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 83% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.

Smart Focus with Zoom Function

The ICA-M4580P is designed with the Smart Focus to make installation and adjustment easier by allowing remote focus and zoom adjustment. The 5x zoom function works by a stepping motor controlled via software to automatically provide the best iris position for the best exposure time in all lighting conditions.

Exceptional Image Quality

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-dimensional Noise Reduction (3DNR) technology, the ICA-M4580P is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Advanced Media Management

The ICA-M4580P supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include ROI (region of interest), motion detection, 3 configurable regions of privacy mask to protect personal privacy, video tampering, intrusion detection, line crossing, loitering detection, people gathering detection, and vehicle detection function. It also comes with image adjustment options, newly-added anti-overexposure protection function, three white balance modes, and five backlight compensation modes. The ICA-M4580P also supports SD card interface. You don’t need to connect to the NVR to set up the recording. The playback function can be realized by performing it directly.

With more user-friendly GUI interface that allows users to better monitor, the ICA-M4580P supports IPv6, QoS and IEEE 802.1X functions. Newly-added secure email for password reset and email encryption protocol now can support TLS.

Flexible Installation and Power Functionality

Powered from a PoE power sourcing equipment such as 802.3af/at PoE switch or 802.3af/at PoE injector over a network cable, the ICA-M4580P, adopting the IEEE 802.3af/at standard, does not need extra power cables and manpower, thus reducing installation costs while increasing deployment flexibility and scalability. The ICA-M4580P is ONVIF compliant and interoperable with other brands in the market, making it an indisputably ideal choice for reliable and high-performance surveillance.

Scheduled Power Rebooting

The ICA-M4580P can be scheduled to reboot at a specified time like minute, hour, every week or every month to reduce the chance of crash resulting from buffer overflow.

Remote Access via Mobile App, Web Browser or PVMS

Remote management makes you easy to set the configuration and live viewing via mobile app, NVR, HDVR, and Web browser. Besides, the ICA-M4580P provides central surveillance management capability with the adoption of its bundled PLANET Video Management Software. With the PVMS, the ICA-M4580P is expandable for multi-sites management of up to 256-ch IP cameras simultaneously. Users are able to monitor the IP cameras anytime, anywhere.

Water-resistant and Dust-proof Protection

The IP67-rated metal housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, such as buildings, roads, parking areas, garages, railway stations and airports.
